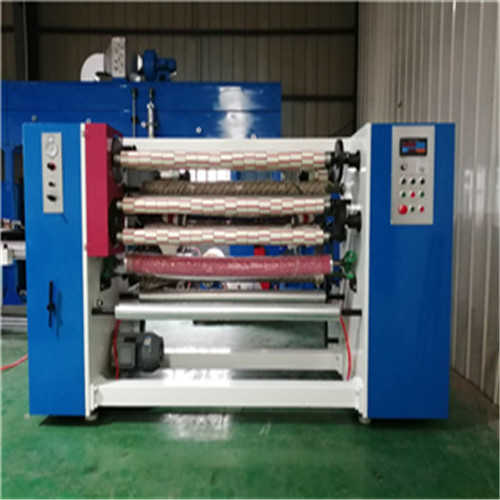

High speed belt slitter is a kind of slitter. High speed slitter is a kind of high efficiency and high precision processing equipment. Its biggest advantage is that the processed paper has no paper wool, the paper stack is neat, the specification can be adjusted at any time, flexible application.
When using the slitter, you should pay attention to the following details, which can be paid attention to from several aspects.
Check whether the number of joints on the cross section of the product is consistent with the number of joints. If the hot-melt adhesive coater does not match, rewind it immediately to prevent the inner joints from mixing into the product.
According to the characteristics of semi-finished products, the EPC device is adjusted to ensure that the EPC photoelectric is always on the tracking line, and the membrane is started at a low speed by holding one end of the membrane by hand, so that the membrane goes into normal state.
Stop pressing the stop key, the hand is not allowed to touch the reel when unloading, so as to avoid fingers being clamped.
Start the machine slowly, observe whether the slitting film meets the quality requirements, and then slowly accelerate to start slitting. When the machine is running, it is strictly forbidden to put the hand into the machine to avoid the back pressure of the hand.
Open (close) the raw material bracket to a suitable width, and put the semi-finished film coil to be cut on the bracket. When feeding, the hand must be away from the cross section of the film coil. Two people are not allowed to operate at the same time to prevent the hand from being clamped by the cylinder.
Return the photoelectricity to the center position to ensure that the slider of the unwinding table is kept in the proper position in the middle of the guide rod.
Put the paper tube that meets the specifications on the receiving shaft, cut the products that meet the requirements into the paper tubes of the upper and lower receiving shafts that are pulled according to the normal method, start the machine at low speed, find out the proper position of the paper tube on the receiving shaft, and mark it for the next installation. When installing the paper tube, hands must grasp the surface of the paper tube to prevent it from slipping and being damaged by the shaft. Lead all the sliced films to the take-up roll according to the operation requirements. When the hot-melt adhesive machine passes through the film, no blade is allowed on the machine to prevent being scratched.
According to the requirements of the task list, install the cutting tool holder to the appropriate position, fasten the cutting tool, and then start the machine at low speed to cut the semi-finished products into the required specifications.
Press to turn on the power of the machine, set the tension of winding and unwinding, the automatic stop number of the counter and the thickness of the material according to the requirements of the task list. After setting, turn on the photoelectric switch.
