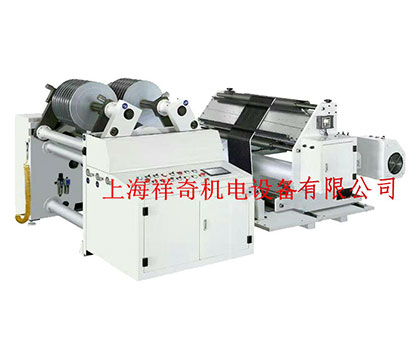

Paper Slitter

The whole machine adopts imported PLC centralized control to realize constant linear speed control of traction and winding and constant tension control of unwinding
Hotline:13761127036

Product details

The whole machine adopts imported PLC centralized control to realize constant linear speed control of traction and winding and constant tension control of unwinding. PLC automatically calculates the diameter of the upper and lower coiling materials, controls the electro pneumatic converter to make the upper and lower precision slip gas expansion shaft get the correct torque, combines with the taper to realize the taper control of the upper and lower coiling tension, and uses the precision pressure reducing valve to control the upper and lower coiling pressure roller to get the ideal pressure. The ideal slip effect can be achieved by using precision slip air expansion shaft, which can solve the problem of uneven material thickness of upper and lower shafts. Similarly, PLC automatically calculates the unwinding diameter and automatically controls the torque of unwinding motor to realize constant tension control. The winder adopts slip gas expansion shaft, precision pressure reducing valve to control pressure roller air pressure and winder linear speed control scheme.

Main technical parameters
Model WZFQ-1100A WZFQ-1300A WZFQ-1600A
Maximum unwinding width 1100mm 1300mm 1600mm
Maximum diameter of unwinding φ1400mm φ1400mm φ1400mm
Minimum width of slitting 50mm 50mm 50mm
Maximum diameter of winding φ1000mm φ1000mm φ1000mm
Slitting speed 10-350m/min 10-350m/min 10-350m/min
Total power 22KW 24KW 28KW
Applicable power supply 380V/50hz 380V/50hz 380V/50hz
Machine weight 7600kg 7800kg 8000kg
Dimensions 3000x2000x2200(mm) 3000x2400x2200(mm) 3000x2700x2200(mm)
